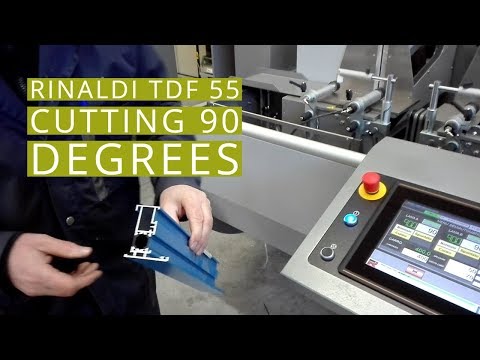

Rinaldi TDF 55 Crosscut Saw

Features

  • Powered CNC head movement
  • Start cutting cycle with two-handed safety device
  • 2 horizontal and 2 vertical clamps with low pressure device
  • Pneumatic misting tool lubrication
  • Hydro-pneumatic cutting speed adjustment
  • 7” colour touch screen control
  • Import cutting lists loaded from USB or network
  • 2 swarf collection drawers
For more information
call 0115 986 5201

Twin head mitre saw with semi-automatic head adjustment via CNC control. External pneumatic head tilt control with two fixed positions 90° and 45°, all gradations up to 22.5° via mechanical setting. Hydro-pneumatic blade feed with inclination of 15°. Swarf collection tray, automatic operator guard. Available in 4m or 5m cutting lengths.


Specification

Diameter blade 550 mm
Blade speed 2850 rpm
Head adjustment speed 25 m/min
Angle blade adjustable 90- 22.5°
Weight 1750 - 1900 kg
Motor 2.2 kW
Power 3 phase

Literature

Rindaldi TDF 55

Download
